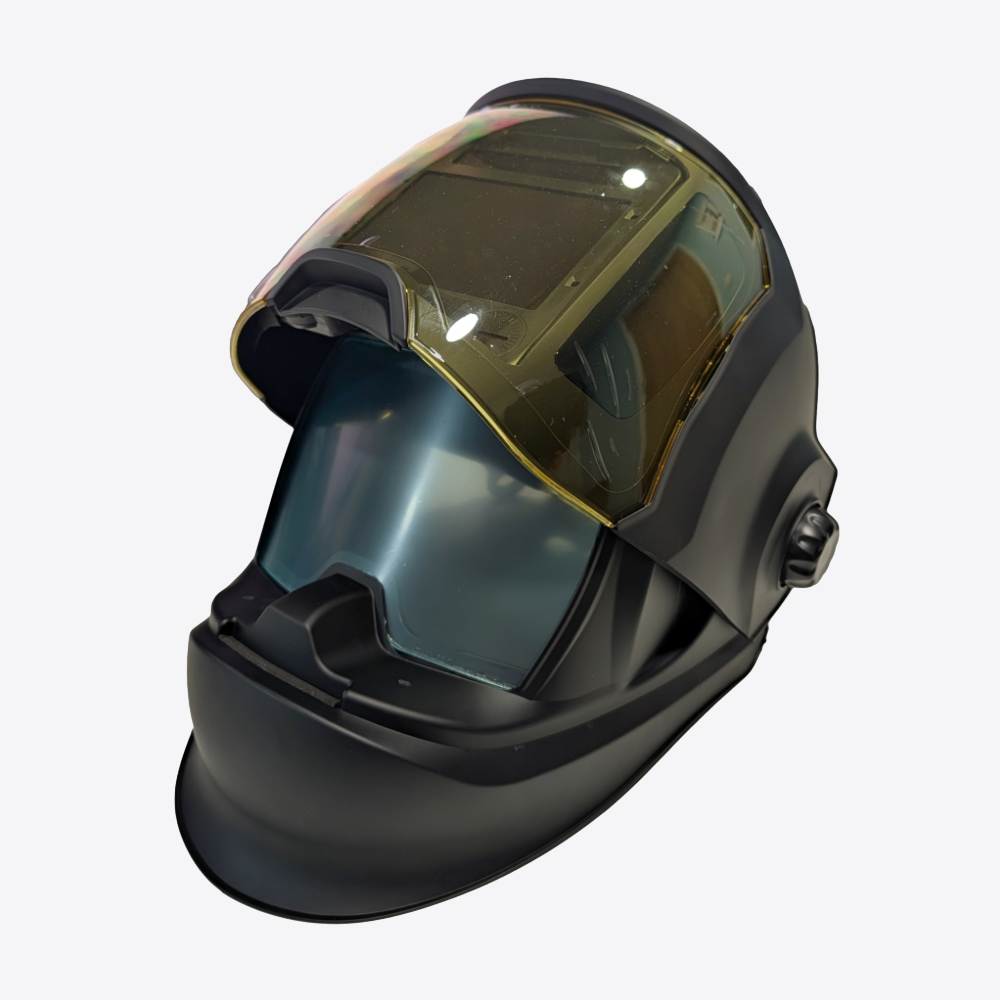

Auto Darkening Flip-Up Air Fed Welding Mask System - True Colour HD
The Solid X Auto Darkening Flip-Up Air Fed Welding Mask System delivers superior visibility with a large viewing area and the flexibility of a lightweight flip-up helmet. It features class-leading TH3 certified filtration for the highest level of respiratory protection against welding fumes, coupled with a long-lasting battery runtime for maximum productivity.
Product Details
The Solid X Auto Darkening Flip-Up Air Fed Welding Mask System delivers superior visibility with a large viewing area and the flexibility of a lightweight flip-up helmet. It features class-leading TH3 certified filtration for the highest level of respiratory protection against welding fumes, coupled with a long-lasting battery runtime for maximum productivity. Maintain your system easily and affordably with sensibly priced consumables ensuring lower long-term running costs.
Solid X Welding Helmet
- Massive ADF measuring 112mm x 75mm
- True colour technology - See the weld perfectly
- Best optical quality - ADF clarity of 1/1/1/1
- Ultra sensitive - 4 sensors - 3A AC/DC TIG
- Fast switching time 1/25,000th second
- Ultimate comfort - Fully adjustable HD-07 headgear to suit all sizes
- All day comfort - the HD-07 Headgear gives evenly distributed centre of gravity
- Class leading shade range - DIN4 to DIN15
- Precise digital controls - shade, sensitivity, delay and weld/cut/grind mode.
- Side view panels offering panoramic vision and better awareness (shade 5), can be blocked out with supplied blanking panels
- Lightweight Flip up design with excellent field of vision
- Auto power on with any movement
- Auto power off after 10 minutes of no movement / arc
- Solar cell with battery assist - 2 replaceable CR2450 lithium batteries
- 1 year warranty on ADF unit
- 3 x Colour outer lenses available - Clear & Yellow included in package
- Helmet weight - 857g
3 Speed Air Blower Unit
- Class leading TH3 filtration
- Use all day with an 8+hr battery run time. Heavy duty battery available for longer life if required.
- Quick charge time, only 2-3 hours
- Intelligent air supply adjusts power according to the condition of the air filter
- Warning buzzer for low air flow
- 3 layers of filtration -
Stainless steel mesh (pre-filter)
Activated carbon filter (odour absorption)
Main air filter (particles, welding fumes and other pollutants P3 filtration) - 1 year warranty
- Blower unit with filter & standard battery, weight - 1080g
Specifications
| Optical Class | 1/1/1/1 |
|---|---|
| Viewing Area (LCD) | 75x112mm (2.95x4.41") |
| Arc Sensors | 4 |
| UV/IR Protection | Up to shade DIN16 at all times |
| Light State Shade | DIN 3 |
| Grind State Shade | DIN 3 |
| Cutting Shades | 4 to 8 |
| Variable Welding Shades | 9 to 12 / 13 to 15 |
| Shade Control | Variable shade, digital display control |
| Power On/Off | Auto-ON, Auto-OFF |
| Sensitivity Control | Variable 1 to 10, digital display control |
| Power Supply | Solar cell with battery assist (2 x CR2450 lithium batteries) |
| Switching Time (Light to Dark) | 0.00004 sec |
| Switching Time (Dark to Light) | Variable 1 to 10, digital display control (0.1 sec to 1.0 sec) |
| Low Amp TIG Rating | DC > 3 amps / AC > 3 amps |
| Cutting/Welding Compatibility | Oxyfuel gas welding, Oxygen cutting, Grinding: yes |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -20°C to 70°C |
| Compliance | CE EN379 EN175 / ANSI Z87.1 |
Contents

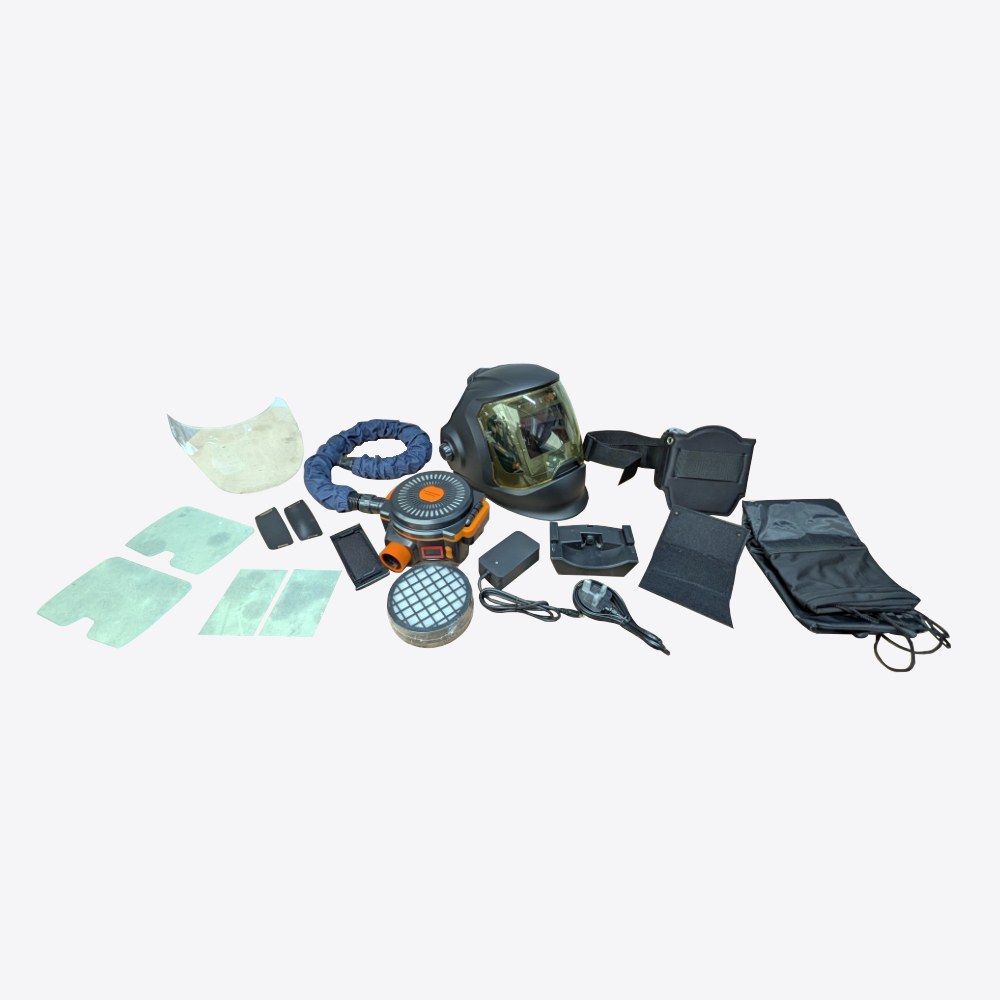

Package includes:
- Solid X Helmet with True Colour 112x75mm ADF shader unit

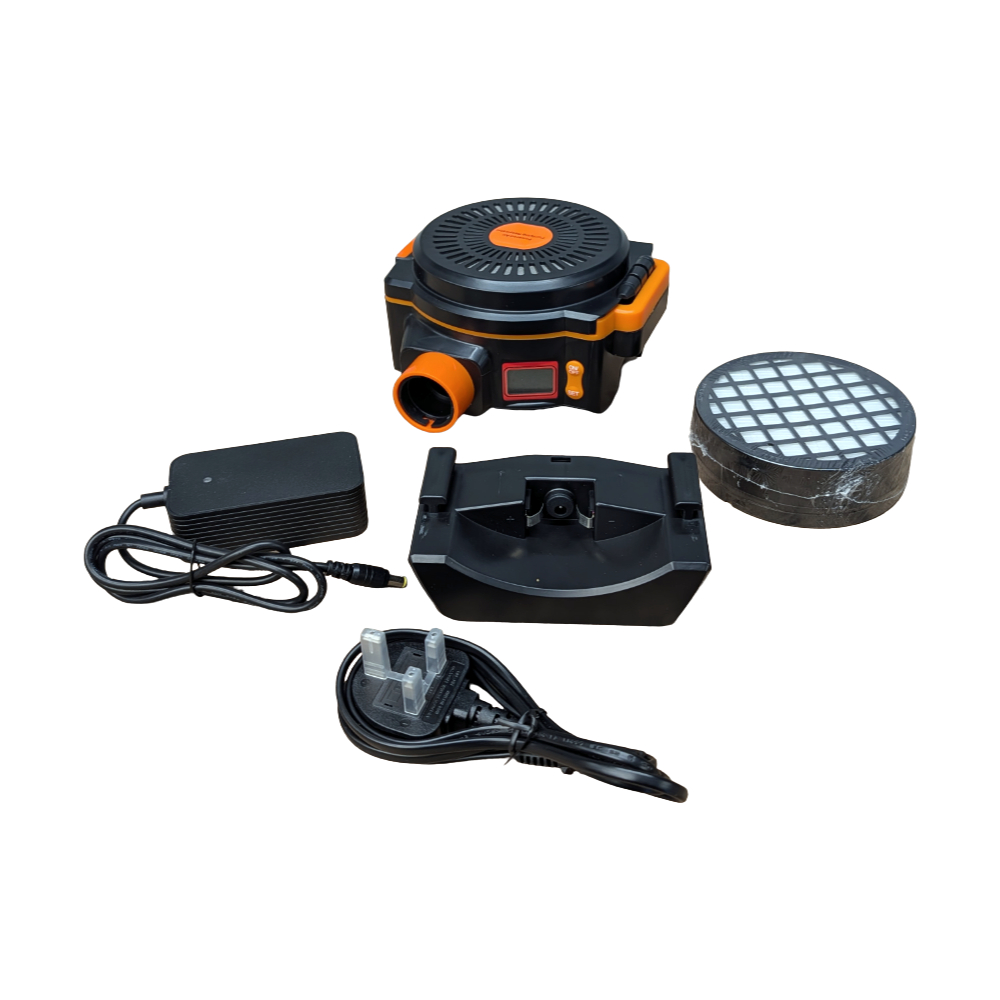

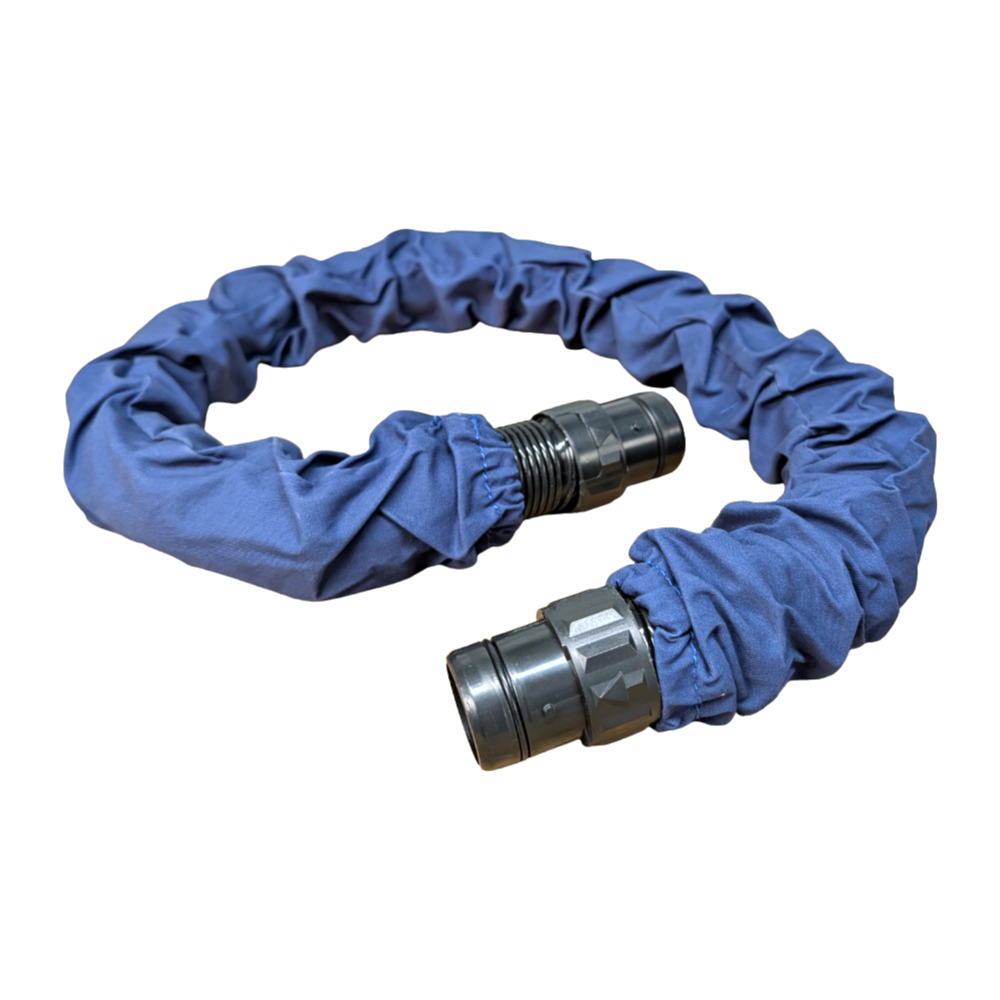

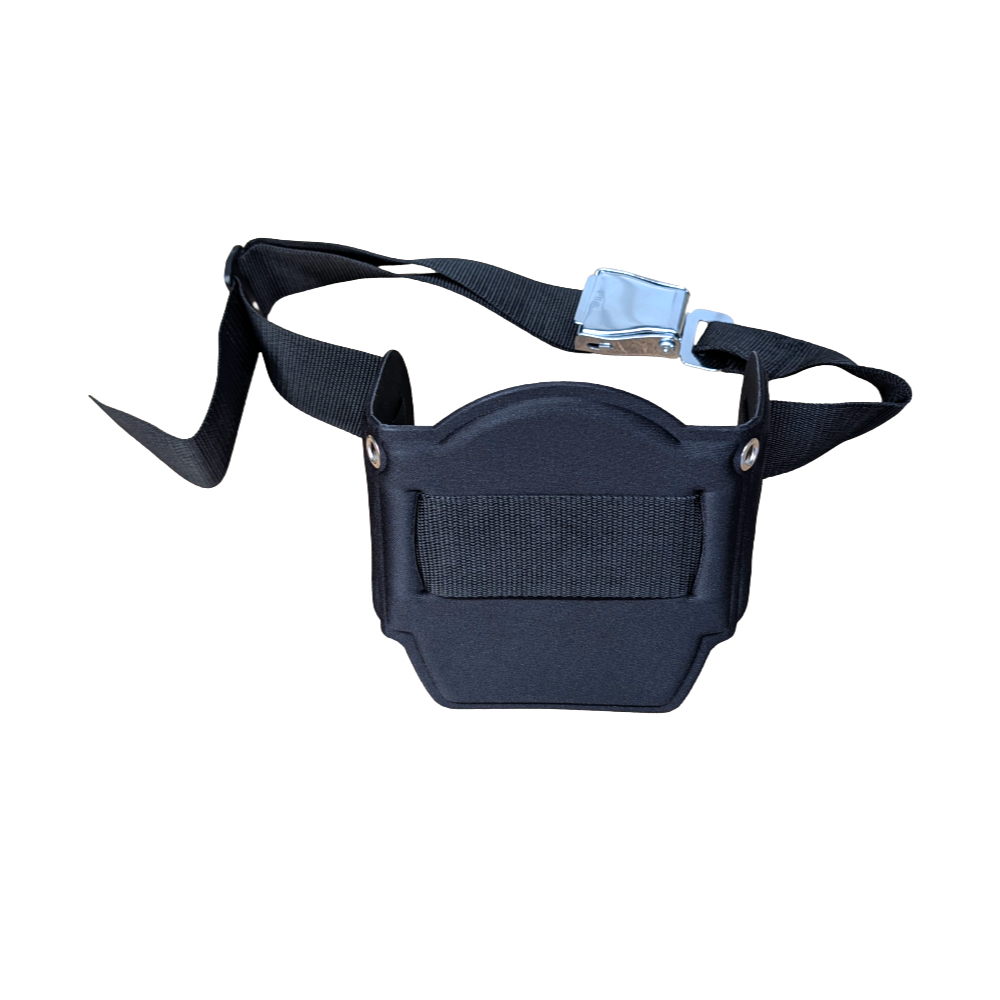

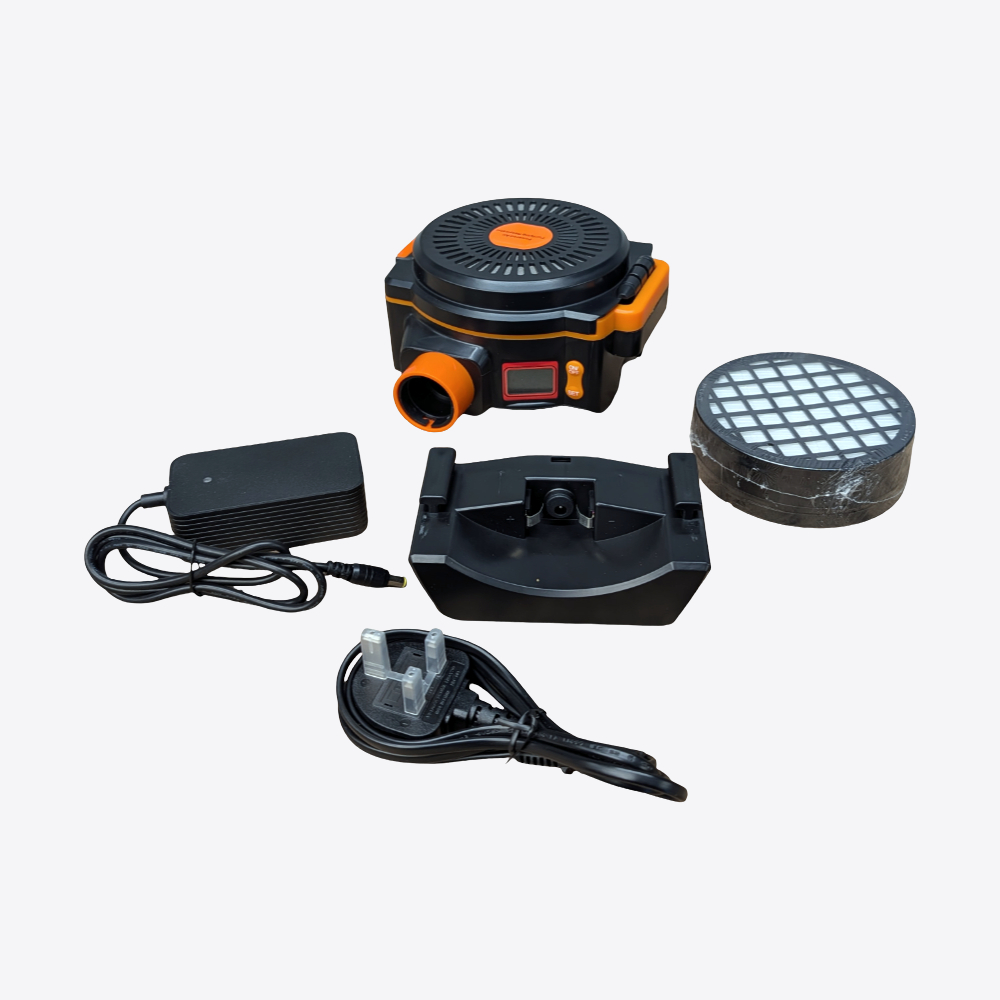

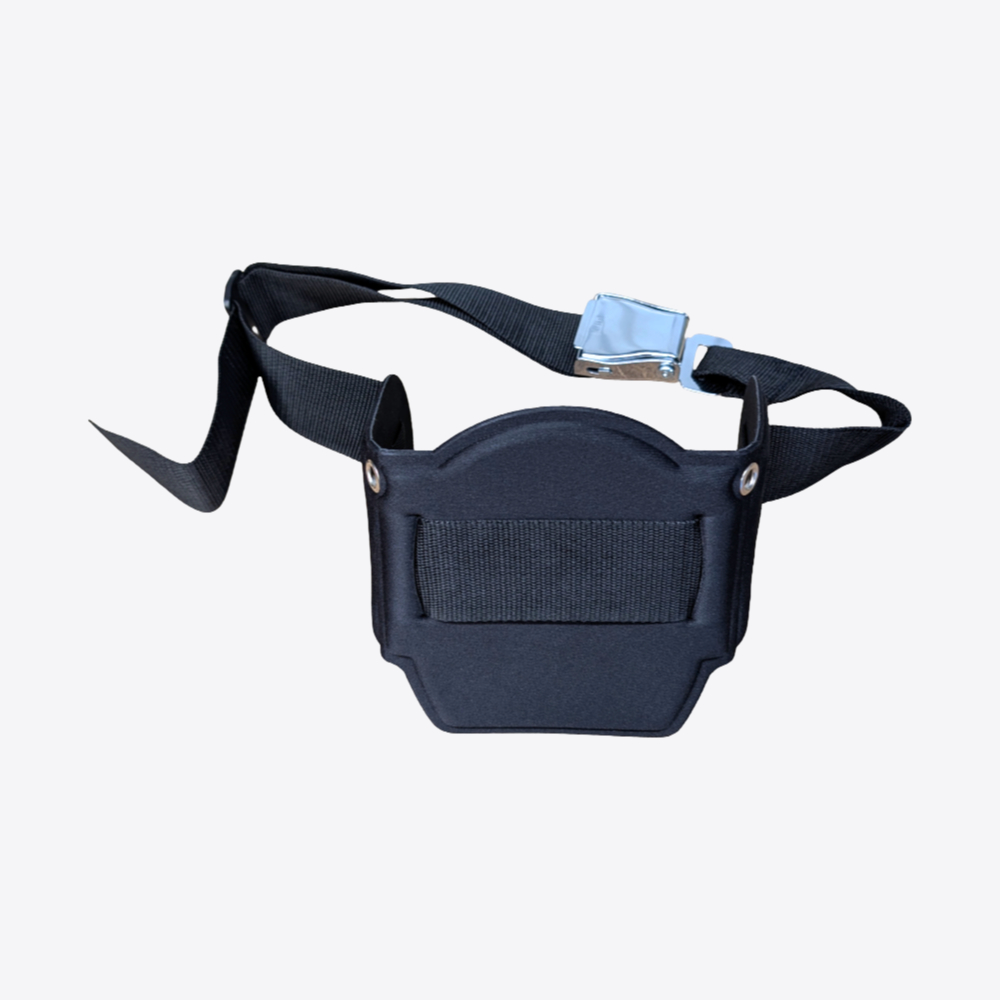

- Air blower assy, quick fit hose, battery, charger, belt and waist pad
- Clear & Yellow outer protective lenses
- Carry bag
- Adaptor for magnifying lenses

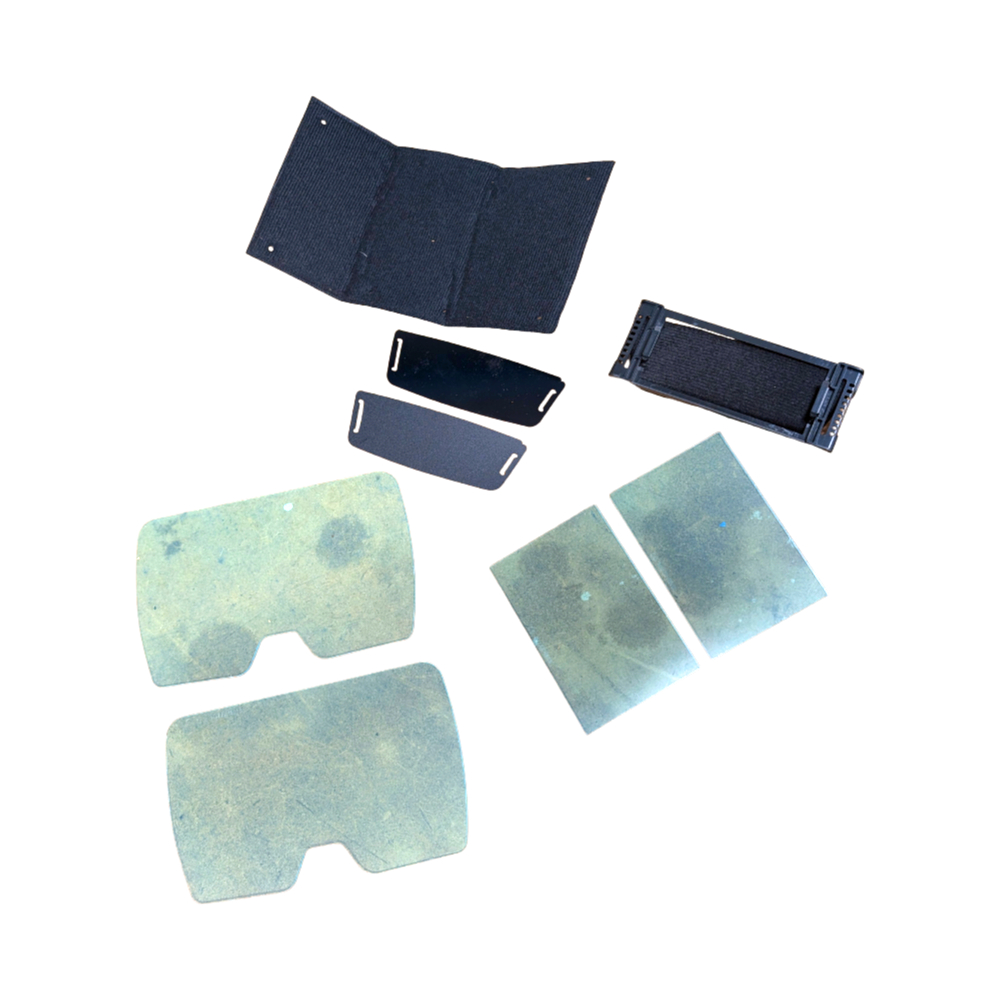

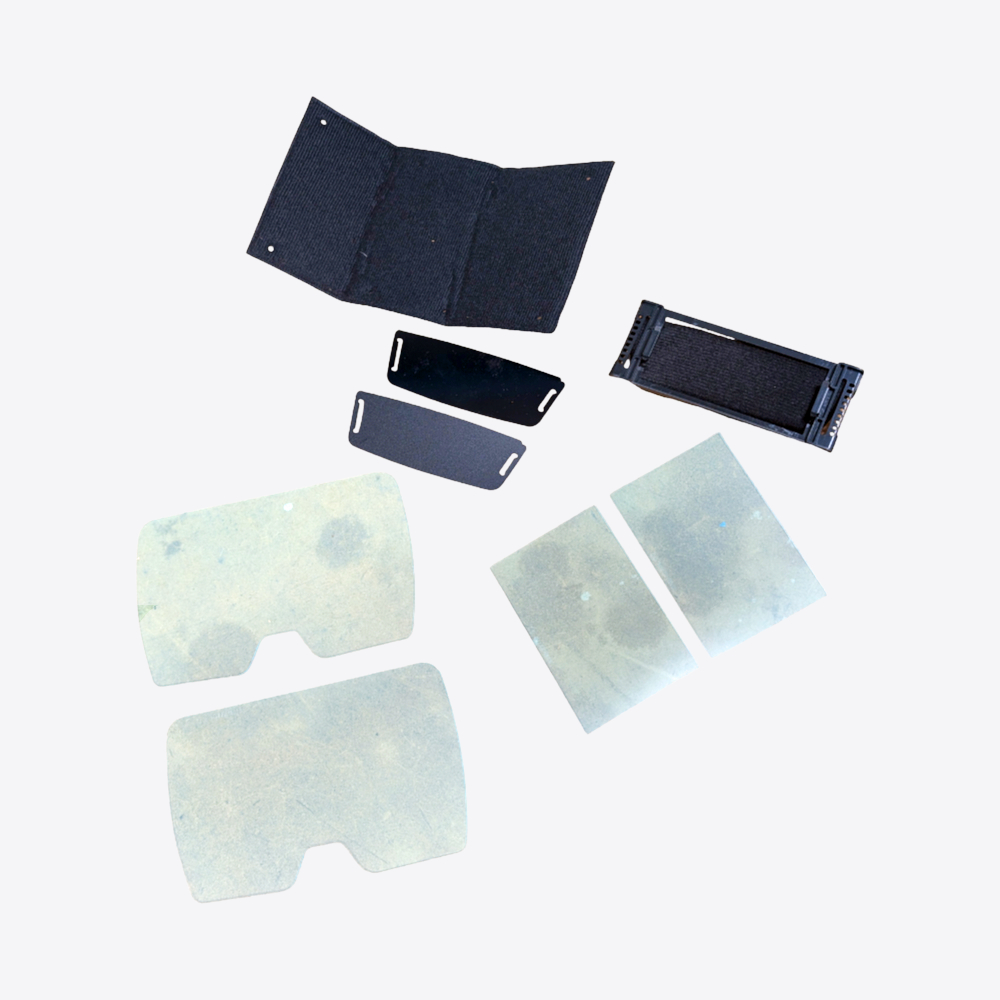

- Spare ADF inner lens x2, outer shield lens x2, Headshield sweatband
- Blanking shields for panoramic side view lens
- Owners Manual
Downloads
Frequently Asked Questions
The standard 5200mAH battery provides over 8 hours of continuous use on a single charge (approximate charging time: 2–3 hours). One major advantage is the "On-Machine Charging" capability. If you forget to charge the battery, simply plug the charger directly into the unit and continue your work without interruption. For heavy users, we keep replacement battery costs sensibly priced. This allows you to easily purchase a spare battery, ensuring you always have a fully charged one ready for long welding shifts.
For optimal protection, replace the main air filter after 180 hours of use. If you are operating in a very dusty environment, the filter may need to be replaced sooner. The air blower assembly automatically monitors the air filter's condition by sensing air flow pressure and adjusting power as needed. If the airflow alarm sounds, check the filters immediately and replace them.
Standard Auto-Darkening Filters (ADFs) cast a dark green/blue tint over your view. Our True Colour technology eliminates this, offering a significantly more realistic viewing experience. By allowing a broader spectrum of light wavelengths through, you get a natural, crystal-clear view of the weld puddle. Once you try a True Colour mask, the difference will be undeniable - you'll never want to return to a standard ADF.
A 1/1/1/1 optical clarity rating is the highest achievable standard, meaning there is absolutely no distortion in your view through the Auto-Darkening Filter (ADF) lens. Lesser quality ADF units often introduce blurriness or an out-of-focus effect, which the 1/1/1/1 rating guarantees to eliminate.
