Invermatrix 500U Synergic Pulse MIG Welder 500A - Water Cooled Industrial Welding
The Invermatrix 500U is the professional-grade solution for industrial fabrication, delivering an uncompromising 500A of power with a 100% Duty Cycle. This heavy-duty, multi-process inverter utilizes Synergic Pulse MIG technology for precise, spatter-free welding on demanding materials like Aluminium and Stainless Steel, supported by an essential Water Cooled Torch system for continuous high-amperage use. Mounted on a robust trolley and ready for robotic integration, the 500U is built for maximum production.
Product Details
We trust and use this machine daily in our own CNC production facility. Contact us today to arrange a live demo!
The Invermatrix 500U is the ultimate industrial-grade Synergic Pulse MIG Welder built for relentless high-production environments. Delivering a massive 500 Amps with an impressive 100% Duty Cycle (at 20℃), this multi-process powerhouse ensures continuous, precision welding across all demanding applications. Featuring Advanced IGBT Technology and an integrated Water Cooled Torch system, the 500U guarantees superior arc stability and longevity while handling complex materials like Aluminium and Stainless Steel with ease. Mounted on a robust industrial trolley, this machine is your reliable solution for heavy-duty fabrication and is Robotic Welding Ready.
- Massive 500A Output: True industrial power for heavy fabrication and continuous high-amperage welding.
- 100% Duty Cycle: Unmatched productivity with 100% duty cycle at 350A (20°C); 60% duty cycle at 500A (40°C}.
- Multi-Process Versatility: Seamless switching between Pulse MIG, Standard MIG, STICK (MMA), and Lift-Arc TIG.
- Synergic Pulse Technology: Provides precise, spatter-free welding control, ideal for Aluminium and Stainless Steel.
- Advanced IGBT Inverter: Delivers exceptional power efficiency and superior arc stability.
- Precision Digital Controls: Easy Set-up panel with Digital Display for precise control of shade, sensitivity, delay, and welding modes.
- Data Memory Function: Saves and recalls preferred settings instantly, streamlining setup for recurring jobs.
- Welding Capacity: Handles a wide range of wire and electrodes up to 1.6mm for varied welding materials.

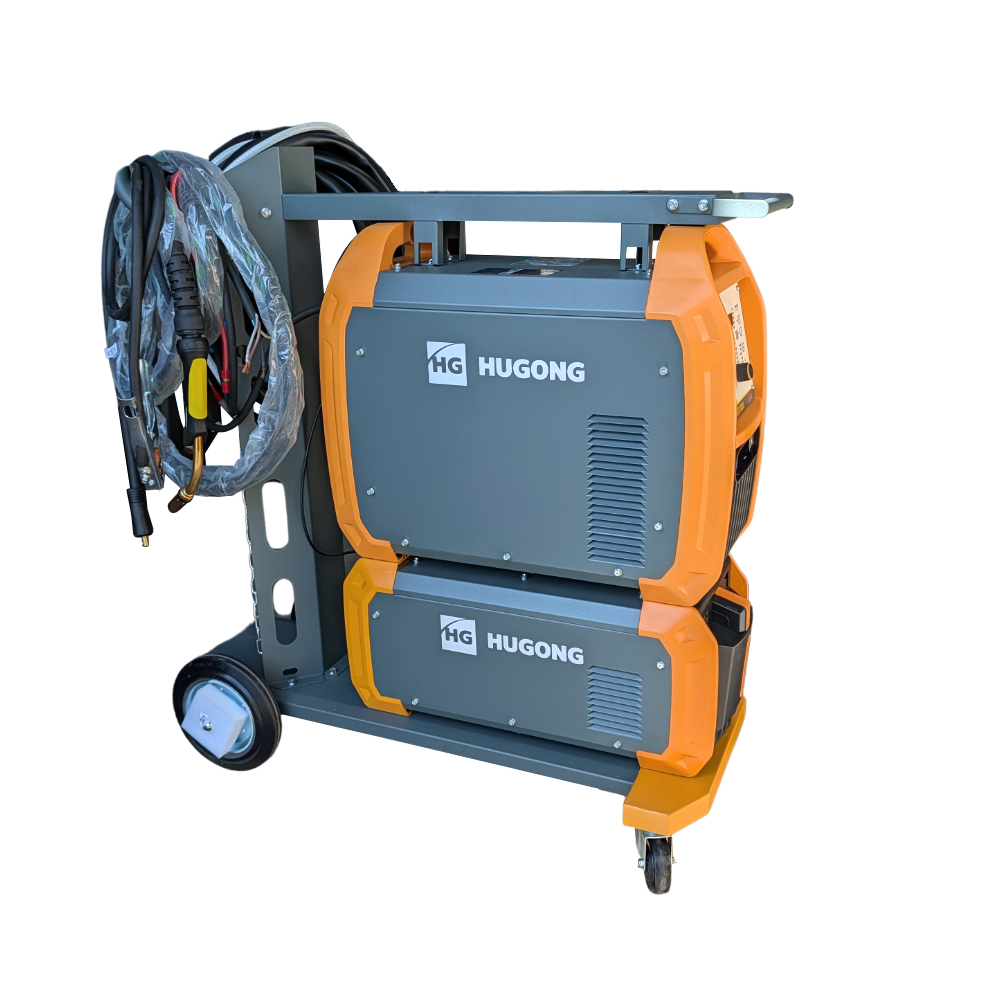

- Robust Trolley: Industrial-grade trolley included for mobility within the workshop.

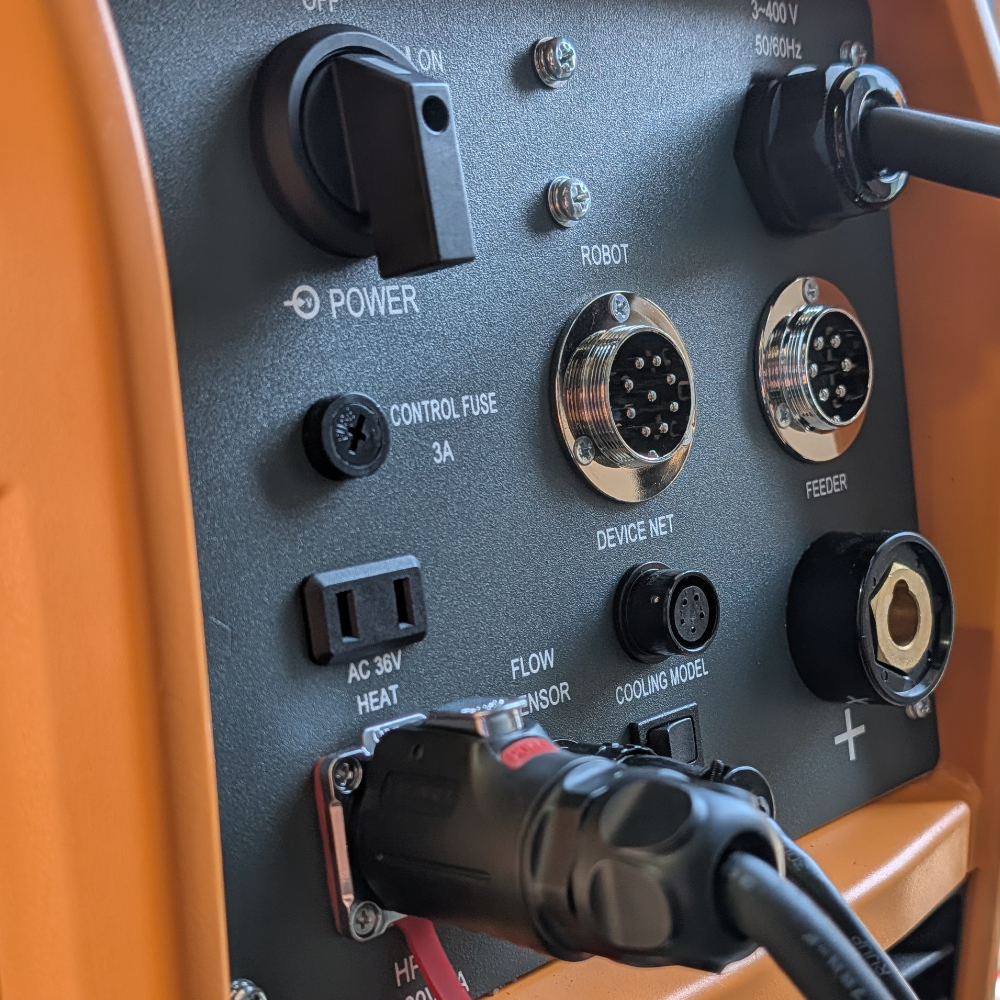

- Automation Ready: Designed with connectivity for seamless integration with robotic welding systems.
Torches, tips and all spares available.
Specifications
| Input Power | 380V (3-Phase) |
|---|---|
| Max Welding Adjustment Current (A) | 500A |
| Welding Current Range (A) | MIG 30-500 / MMA 10-500 |
| Rated Open Circuit Voltage (V) | 76V |
| Rated Input Current (A) | 38A |
| Rated Input Capacity (kVA) | 32.5 kVA |
| Duty Cycle (20°C) | 100% @ 500A |
| Duty Cycle (40°C) | 60% @ 500A |
| Welding Processes | Pulse MIG, Standard MIG, STICK (MMA), Lift-Arc TIG |
| Max Wire Diameter (mm) | 0.8 - 1.6 mm |
| Weight (kg) | 150 kg |
| Dimensions (LxWxH mm) | 1095 x 525 x 1120 |
